Brand
Standard Pumps, manufactured in a state of the art 25,000 Square meter production faculty outside Altanta, Georgia USA, are commonly used in chemical processing, waste water treatment, plating, medical, semi-conductor, agriculture and petroleum industries.

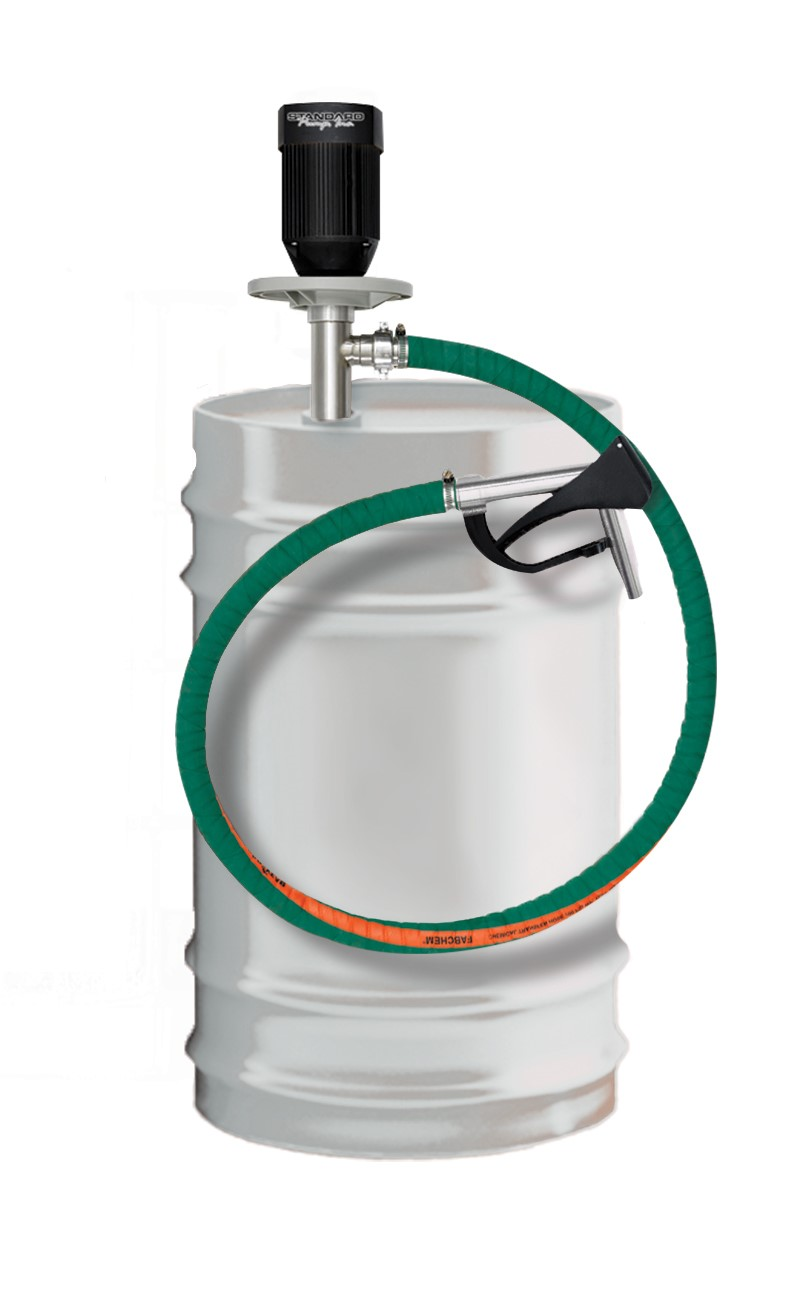

Standard are market leaders in drum pumps. Suitable for most liquids in industrial, hygienic, food, beverage or pharmaceutical applications. Pump & Machinery carry a range of the industrial drum pumps on the shelf.
Standard Metering Pumps are engineered to safely measure and dispense preset batches of product from drums and tanks. The unique design eliminates the need for scales and pails as product can be metered directly out of your source vessel. Available in both Industrial and Sanitary configurations.
Engineered to control, measure and dispense preset volumes of liquid from drums, IBC’s, plating tanks or any large storage vessel. The air systems are ideal for high frequency, continuous duty applications. The BCS can be used in an industry where batching, chemical packaging or dilution is required to be accurate and efficient. Simply dial in the desired volume, press ENTER and the BCS delivers a preset volume of liquid virtually hands-free.
Standard Pump motors are designed to operate in the most demanding of environments. An extensive line ofExplosion Proof, TEFC, Open Drip-Proof and Air motors provide durability and safety regardless of the environment.
Our complete range of pump tubes provide an ideal solution for applications ranging from corrosive chemicals to light oils. Pump tubes are available in Polypropylene, PVDF, CPVC, Stainless Steeland Aluminum.
Our 3A Sanitary Pumps are a hygienic solution specifically designed for the dairy process industry. The 3A pumps feature over-molded diaphragms and a swivel stand.
Our 3A Sanitary Pumps are a hygienic solution specifically designed for the dairy process industry. The 3A pumps feature over-molded diaphragms and a swivel stand.
Sizes from 40mm to 100mm pumps,Ideal for Poultry,Large Solids, a very versatile pump for the Food Processing Industry.
Over the next twenty-five years, we have expanded the product line to include Air-Operated Double Diaphragm pumps (AODD) as well as Metering Systems. Our Fluid Handling Equipment serves the Chemical, Food, Beverage, Cosmetic, Pharmaceutical and Automotive industries in fifty-two countries.
Today, we continue our commitment to manufacturing high quality Fluid Handling Equipment in our modern ISO 9001 certified factory in Duluth, Ga. All Standard Pump products adhere to stringent safety guidelines set for by agencies such as Underwriter’s Laboratories (UL), CSA, 3A, ETL and the FDA.
Pump Design: Sealless / Centrifugal Discharge: 1" (25,4 mm) Hose Barb *¾" (19 mm) Hose Barb available upon request Wetted Materials: Polypropylene, PTFE, Carbon Graphite, Hastelloy C-276 Motor Drive Options:110V & 220V Single Phase, Pneumatic Maximum Viscosity: (based on motor option SP-280P & SP-ENC : 1500 cps (mPas) SP-A2 : 750 cps (mPas) SP-A1 : 450 cps (mPas) Maximum Discharge Pressure: .SP-PP : 16 psi (1,1 bar) .SP-PP-HH : 32 psi (2,2 bar) Maximum Flow Rate (based on water) .SP-PP : 35 gpm (132 lpm) . SP-PP-HH : 16 gpm (60 lpm) Maximum Specific Gravity:.1.8* Maximum Temperature: .130° F (55° C) Available Immersion Lengths: .27" (700 mm), 39" (1000 mm), 47" (1200 mm), .50" (1270 MM), 60" (1500 mm), 72" 1800 mm) *Additional lengths available upon request
